Exide InvaTall New generation Inverter battery with Taller Plate couple
Appealing look: New look Tall battery with improved cosmetics.

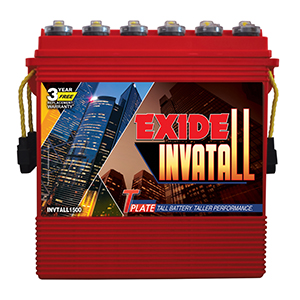

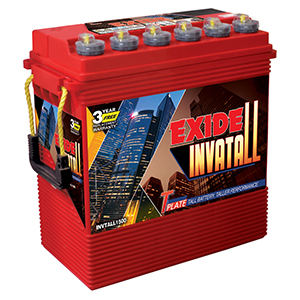

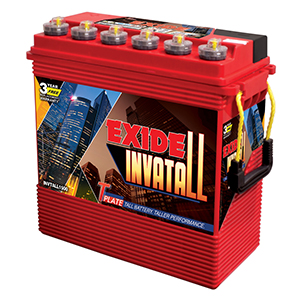

PRODUCT IMAGES
New generation Inverter battery with Taller Plate couple
Appealing look: New look Tall battery with improved cosmetics.
Thick Plate Construction with special paste formulation & high surface area suitable for deep discharge during long power cuts.
Enhanced life: Robust design prevents Corrosion in Positive Plates which in turn lowers the degradation rate & enhances Life expectancy.
Optimized Alloy System - Suitable for deep discharge application.
Reliability and Durability - Positive Plate wrapped with Glassmat & Negative Plate enveloped with special type PE Separator to reduce paste shedding & ensuring reliability and durability.
Quick recharge from a state of deep discharge for hassle free functioning during frequent power cuts.
New Float Assembly with click fit Top Part - Battery grade distilled water can be poured without opening the Float Assembly - more user friendly.
Lug Type take-off & fasteners - Batteries can be easily connected to the circuit.
Easy Handling - Rope Handle with partial plastic encasing.
Unique Ribbed Design Polypropylene Container and Cover offering enhanced mechanical strength and durability for safe operation.
Ready for commissioning - Batteries supplied in factory charged condition.
TECHNICAL SPECIFICATIONS OF EXIDE INVA TALL BATTERIES
BATTERY TYPE
PART NUMBER
VOLTAGE (V)
CAPACITY (AH) 20HR (REF)
MAXIMUM OVERALL DIMENSION (mm)
FILLED WEIGHT (kg)
ELECTROLYTE VOLUME (L)
CHARGING CURRENT (A)
L (mm)
W (mm)
H (mm)
H (with Float) (mm)
INVTALL2000
FIL0-INVTALL2000
12
200
403
191
406
417
55.0 ± 3%
13.7
16.0
