Exide Inverter Battery

EXIDE INVAMORE



FEATURES OF EXIDE INVAMORE BATTERY RANGE



Exide InvaMore Unique and cutting edge T-plate technology for the first time in an inverter battery that provides unbeatable life expectancy and performance due to taller plates



  • Unique and cutting edge T-plate technology for the first time in an inverter battery that provides unbeatable life expectancy and performance due to taller plates

  • Optimized Alloy System for deep discharge application

  • Double Clad Separation ensures proper support to Active Material leading to higher reliability in application

  • New Float Assembly with click-fit top part: Battery grade distilled water can be poured without opening the Float Assembly making it more user-friendly

  • Rope handle with partial plastic encasing for easy handling

  • Lug type take-off ensures easy fitment during installation

  • Factory-charged batteries that are ready for commissioning

  • New design with improved cosmetics that enhances the look of the battery


  • Technical Specifications for Exide Invamore Batteries

    BATTERY TYPE PART NUMBER VOLTAGE
    (V)
    CAPACITY
    (AH) 20HR (REF)
    MAXIMUM OVERALL DIMENSIONS (MM) NOMINAL
    FILLED
    WEIGHT
    (KG)
    ELECTROLYTE
    VOLUME
    (L)
    ACID
    LEVEL
    INDICATOR
    BENCH
    CHARGING
    CURRENT (A)
    L
    (MM)
    W
    (MM)

    (MM)
    H
    (With Float)
    (MM)
    INVAMORE1300 FIO0-INVAMORE1300 12 130 550 176 282 312 39.2±3% 10.4 PRESENT 9.1
    INVAMORE1500 FIO0-INVAMORE1500 12 150 550 176 282 312 44.8±3% 12.3 PRESENT 10.5
    INVAMORE1800 FIO0-INVAMORE1800 12 180 550 176 282 312 48.9±3% 12.0 PRESENT 12.6

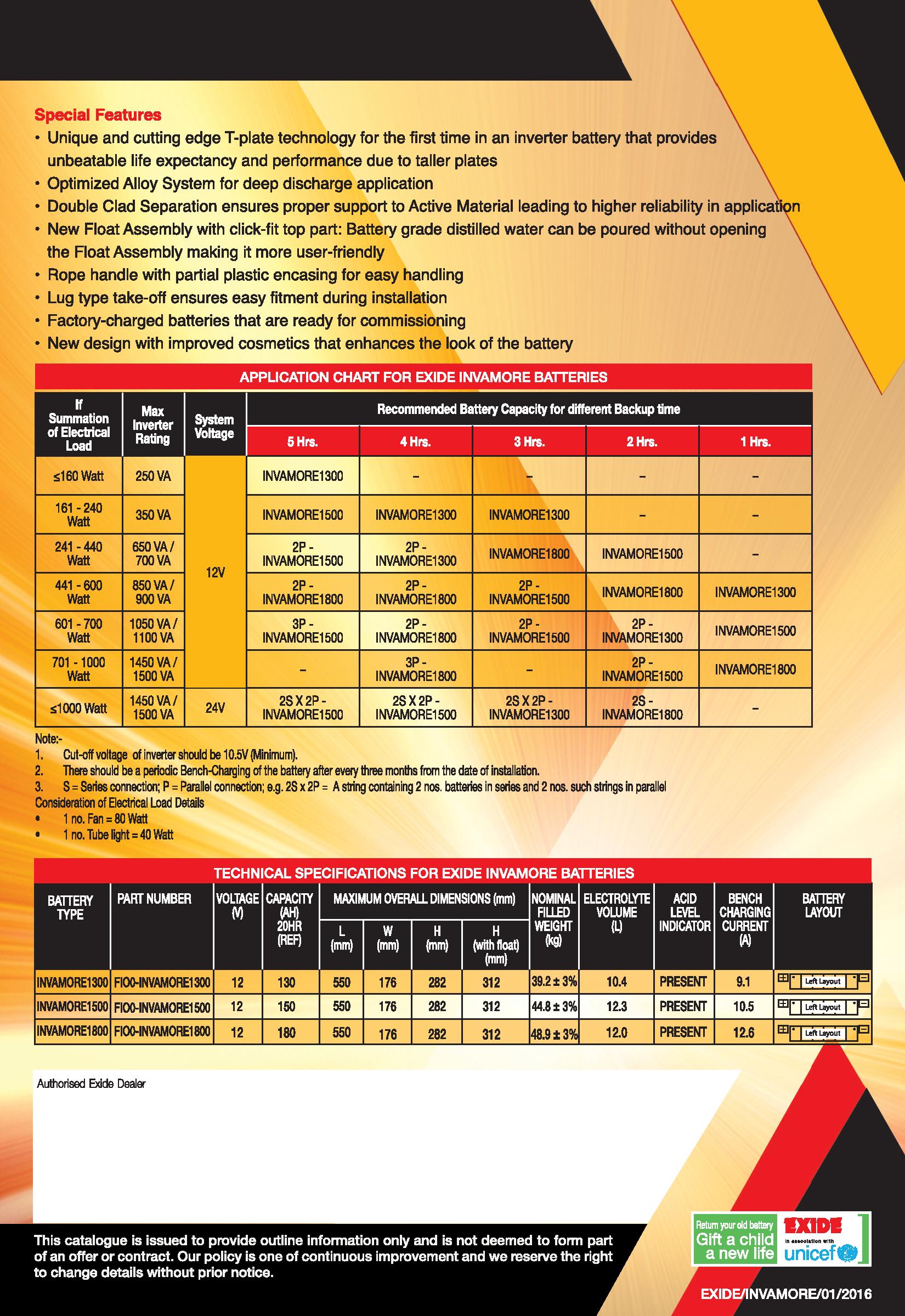

    APPLICATION CHART FOR EXIDE INVAMORE BATTERIES

    If
    Summation of
    Electrical Load
    Max.
    Inverter
    Rating
    System
    Voltage
    Recommended Battery Capacity for different Backup time
    5 Hrs. 4 Hrs. 3 Hrs. 2 Hrs. 1 Hrs.
    160 Watt 250 VA 12V INVAMORE1300 - - - -
    161 - 240 Watt 350 VA 12V INVAMORE1500 INVAMORE1300 INVAMORE1300 - -
    241 - 440 Watt 650 VA / 700 VA 12V 2P - INVAMORE1500 2P - INVAMORE1300 INVAMORE1800 INVAMORE1500 -
    441 - 600 Watt 850 VA / 900 VA 12V 2P - INVAMORE1800 2P - INVAMORE1800 2P - INVAMORE1500 INVAMORE1800 INVAMORE1300
    601 - 700 Watt 1050 VA / 1100 VA 12V 3P - INVAMORE1500 2P - INVAMORE1800 2P - INVAMORE1500 2P - INVAMORE1300 INVAMORE1500
    701 - 1000 Watt 1450 VA / 1500 VA 12V - 3P - INVAMORE1800 - 2P - INVAMORE1500 INVAMORE1800
    1000 Watt 1450 VA / 1500 VA 24V 2S x 2P - INVAMORE1500 2S x 2P - INVAMORE1500 2S x 2P - INVAMORE1300 2S - INVAMORE1800 -

    Note:

  • * Cut-off voltage of inverter should be 10.5V (Minimum).

  • * There should be a periodic Bench-Charging of the battery after every three months from the date of installation.

  • * S = Series connection
    P = Parallel connection
    e.g. 2S x 2P = A string containing 2 nos. batteries in series and 2 nos. such strings in parallel. Consideration of Electrical Load Details
    1 no. Fan = 80 Watt
    1 no. Tube light = 40 Watt
